Cześć,

W ostatnim wątku zdecydowałem iż zostanę przy sterowaniu oświetleniem opertym na Arduino w swojej instalacji inteligentnego domu. Zdecydowałem też że chcę to wszystko oprzeć na Home Assistant.

Chcąc podłączyć Arduino do HA naszukałem się i naczytałem sporo informacji w necie, lecz powiązanie nie nastąpiło. Przygotowałem skecz ale nie łączy się nawet z moją siecią LAN (nie ma go w liście urządzeń LAN).

Proszę o weryfikację:

Spoiler
Skecz

/*
* The MySensors Arduino library handles the wireless radio link and protocol
* between your home built sensors/actuators and HA controller of choice.
* The sensors forms a self healing radio network with optional repeaters. Each
* repeater and gateway builds a routing tables in EEPROM which keeps track of the
* network topology allowing messages to be routed to nodes.
*
* Created by Henrik Ekblad <henrik.ekblad@mysensors.org>
* Copyright (C) 2013-2019 Sensnology AB
* Full contributor list: https://github.com/mysensors/MySensors/graphs/contributors
*
* Documentation: http://www.mysensors.org
* Support Forum: http://forum.mysensors.org
*
* This program is free software; you can redistribute it and/or
* modify it under the terms of the GNU General Public License
* version 2 as published by the Free Software Foundation.
*
*******************************
*
* REVISION HISTORY
* Version 1.0 - Henrik Ekblad
*
* DESCRIPTION
* The W5100 MQTT gateway sends radio network (or locally attached sensors) data to your MQTT broker.
* The node also listens to MY_MQTT_TOPIC_PREFIX and sends out those messages to the radio network
*
* LED purposes:
* - To use the feature, uncomment WITH_LEDS_BLINKING in MyConfig.h
* - RX (green) - blink fast on radio message received. In inclusion mode will blink fast only on presentation received
* - TX (yellow) - blink fast on radio message transmitted. In inclusion mode will blink slowly
* - ERR (red) - fast blink on error during transmission error or receive crc error
*
* See http://www.mysensors.org/build/esp8266_gateway for wiring instructions.
* nRF24L01+ ESP8266
* VCC VCC
* CE GPIO4
* CSN/CS GPIO15
* SCK GPIO14
* MISO GPIO12
* MOSI GPIO13
*
* Not all ESP8266 modules have all pins available on their external interface.
* This code has been tested on an ESP-12 module.
* The ESP8266 requires a certain pin configuration to download code, and another one to run code:
* - Connect REST (reset) via 10K pullup resistor to VCC, and via switch to GND ('reset switch')
* - Connect GPIO15 via 10K pulldown resistor to GND
* - Connect CH_PD via 10K resistor to VCC
* - Connect GPIO2 via 10K resistor to VCC
* - Connect GPIO0 via 10K resistor to VCC, and via switch to GND ('bootload switch')
*
* Inclusion mode button:
* - Connect GPIO5 via switch to GND ('inclusion switch')
*
* Hardware SHA204 signing is currently not supported!
*
* Make sure to fill in your ssid and WiFi password below for ssid & pass.
*/

// Enable debug prints to serial monitor
#define MY_DEBUG

// Enables and select radio type (if attached)
#define MY_RADIO_RF24
//#define MY_RADIO_RFM69
//#define MY_RADIO_RFM95

#define MY_GATEWAY_MQTT_CLIENT

// Set this node's subscribe and publish topic prefix
#define MY_MQTT_PUBLISH_TOPIC_PREFIX "sterownik_1_in"
#define MY_MQTT_SUBSCRIBE_TOPIC_PREFIX "sterownik_1_out"

// Set MQTT client id
#define MY_MQTT_CLIENT_ID "Sterownik_1"

// W5100 Ethernet module SPI enable (optional if using a shield/module that manages SPI_EN signal)
#define MY_W5100_SPI_EN 4

// Enable Soft SPI for NRF radio (note different radio wiring is required)
// The W5100 ethernet module seems to have a hard time co-operate with
// radio on the same spi bus.
#if !defined(MY_W5100_SPI_EN) && !defined(ARDUINO_ARCH_SAMD)
#define MY_SOFTSPI
#define MY_SOFT_SPI_SCK_PIN 14
#define MY_SOFT_SPI_MISO_PIN 16
#define MY_SOFT_SPI_MOSI_PIN 15
#endif

// When W5100 is connected we have to move CE/CSN pins for NRF radio
#ifndef MY_RF24_CE_PIN
#define MY_RF24_CE_PIN 5
#endif
#ifndef MY_RF24_CS_PIN
#define MY_RF24_CS_PIN 6
#endif

// Enable these if your MQTT broker requires username/password
//#define MY_MQTT_USER "username"
//#define MY_MQTT_PASSWORD "password"

byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xEE };

// Enable MY_IP_ADDRESS here if you want a static ip address (no DHCP)
#define MY_IP_ADDRESS 192,168,0,201

// If using static ip you can define Gateway and Subnet address as well
#define MY_IP_GATEWAY_ADDRESS 192,168,0,1
#define MY_IP_SUBNET_ADDRESS 255,255,255,0

// MQTT broker ip address or url. Define one or the other.
//#define MY_CONTROLLER_URL_ADDRESS "m20.cloudmqtt.com"
#define MY_CONTROLLER_IP_ADDRESS 192,168,0,140

// The MQTT broker port to to open
#define MY_PORT 8123

/*
// Enable inclusion mode
#define MY_INCLUSION_MODE_FEATURE
// Enable Inclusion mode button on gateway
//#define MY_INCLUSION_BUTTON_FEATURE
// Set inclusion mode duration (in seconds)
#define MY_INCLUSION_MODE_DURATION 60
// Digital pin used for inclusion mode button
//#define MY_INCLUSION_MODE_BUTTON_PIN 3

// Set blinking period
#define MY_DEFAULT_LED_BLINK_PERIOD 300

// Flash leds on rx/tx/err
// Uncomment to override default HW configurations
//#define MY_DEFAULT_ERR_LED_PIN 16 // Error led pin
//#define MY_DEFAULT_RX_LED_PIN 16 // Receive led pin
//#define MY_DEFAULT_TX_LED_PIN 16 // the PCB, on board LED
*/

#include
#include
#include

// Enable repeater functionality for this node
#define MY_REPEATER_FEATURE

#define RELAY_LA_01 4 // Arduino Digital I/O pin number for first relay (second on pin+1 etc)
#define RELAY_LA_02 5
#define RELAY_LA_03 6
#define RELAY_LA_04 7
#define RELAY_LA_05 8
#define RELAY_LA_06 9
#define RELAY_LA_07 10
#define RELAY_LA_08 11
#define RELAY_LA_09 12
#define RELAY_LA_10 13

#define NUMBER_OF_RELAYS 10 // Total number of attached relays
#define RELAY_ON 0 // GPIO value to write to turn on attached relay
#define RELAY_OFF 1 // GPIO value to write to turn off attached relay

#define LA_01 A1
#define LA_02 A2
#define LA_03 A3
#define LA_04 A4
#define LA_05 A5
#define LA_06 A6
#define LA_07 A7
#define LA_08 A8
#define LA_09 A9
#define LA_10 A10

void before() {
for (int sensor=1, pin=RELAY_LA_01; sensor<=NUMBER_OF_RELAYS;sensor++, pin++) {
// Then set relay pins in output mode
pinMode(pin, OUTPUT);
// Set relay to last known state (using eeprom storage)
digitalWrite(pin, loadState(sensor)?RELAY_ON:RELAY_OFF);
}
}
Bounce debouncer = Bounce();
Bounce debouncer2 = Bounce();
Bounce debouncer3 = Bounce();
Bounce debouncer4 = Bounce();
Bounce debouncer5 = Bounce();
Bounce debouncer6 = Bounce();
Bounce debouncer7 = Bounce();
Bounce debouncer8 = Bounce();
Bounce debouncer9 = Bounce();
Bounce debouncer10 = Bounce();

void setup() {
// Setup locally attached sensors
delay(10000);
// Setup the button.
pinMode(LA_01, INPUT_PULLUP);
pinMode(LA_02, INPUT_PULLUP);
pinMode(LA_03, INPUT_PULLUP);
pinMode(LA_04, INPUT_PULLUP);
pinMode(LA_05, INPUT_PULLUP);
pinMode(LA_06, INPUT_PULLUP);
pinMode(LA_07, INPUT_PULLUP);
pinMode(LA_08, INPUT_PULLUP);
pinMode(LA_09, INPUT_PULLUP);
pinMode(LA_10, INPUT_PULLUP);
// After setting up the button, setup debouncer.
debouncer.attach(LA_01);
debouncer.interval(5);
debouncer2.attach(LA_02);
debouncer2.interval(5);
debouncer3.attach(LA_03);
debouncer3.interval(5);
debouncer4.attach(LA_04);
debouncer4.interval(5);
debouncer5.attach(LA_05);
debouncer5.interval(5);
debouncer6.attach(LA_06);
debouncer6.interval(5);
debouncer7.attach(LA_07);
debouncer7.interval(5);
debouncer8.attach(LA_08);
debouncer8.interval(5);
debouncer9.attach(LA_09);
debouncer9.interval(5);
debouncer10.attach(LA_10);
debouncer10.interval(5);

//presentation();
}
void presentation()
{
// Send the sketch version information to the gateway and Controller
sendSketchInfo("Relay", "1.0");

for (int sensor=1, pin=RELAY_LA_01; sensor<=NUMBER_OF_RELAYS;sensor++, pin++) {
// Register all sensors to gw (they will be created as child devices)
present(sensor, S_LIGHT);
}
}

MyMessage msg(1, V_LIGHT);
MyMessage msg2(2, V_LIGHT);
MyMessage msg3(3, V_LIGHT);
MyMessage msg4(4, V_LIGHT);
MyMessage msg5(5, V_LIGHT);
MyMessage msg6(6, V_LIGHT);
MyMessage msg7(7, V_LIGHT);
MyMessage msg8(8, V_LIGHT);
MyMessage msg9(9, V_LIGHT);
MyMessage msg10(10, V_LIGHT);

void loop() {
// Send locally attached sensor data here
if (debouncer.update()) {
// Get the update value.
int value = debouncer.read();
// Send in the new value.
if(value == LOW){
saveState(1, !loadState(1));
digitalWrite(RELAY_LA_01, loadState(1)?RELAY_ON:RELAY_OFF);
send(msg.set(loadState(1)));
}
}
if (debouncer2.update()) {
int value2 = debouncer2.read();
if(value2 == LOW){
saveState(2, !loadState(2));
digitalWrite(RELAY_LA_02, loadState(2)?RELAY_ON:RELAY_OFF);
send(msg2.set(loadState(2)));
}
}
if (debouncer3.update()) {
// Get the update value.
int value3 = debouncer3.read();
// Send in the new value.
if(value3 == LOW){
saveState(3, !loadState(3));
digitalWrite(RELAY_LA_03, loadState(3)?RELAY_ON:RELAY_OFF);
send(msg3.set(loadState(3)));
}
}
if (debouncer4.update()) {
// Get the update value.
int value4 = debouncer4.read();
// Send in the new value.
if(value4 == LOW){
saveState(4, !loadState(4));
digitalWrite(RELAY_LA_04, loadState(4)?RELAY_ON:RELAY_OFF);
send(msg4.set(loadState(4)));
}
}
if (debouncer5.update()) {
// Get the update value.
int value5 = debouncer5.read();
// Send in the new value.
if(value5 == LOW){
saveState(5, !loadState(5));
digitalWrite(RELAY_LA_05, loadState(5)?RELAY_ON:RELAY_OFF);
send(msg5.set(loadState(5)));
}
}
if (debouncer6.update()) {
// Get the update value.
int value6 = debouncer6.read();
// Send in the new value.
if(value6 == LOW){
saveState(6, !loadState(6));
digitalWrite(RELAY_LA_06, loadState(6)?RELAY_ON:RELAY_OFF);
send(msg6.set(loadState(6)));
}
}
if (debouncer7.update()) {
// Get the update value.
int value7 = debouncer7.read();
// Send in the new value.
if(value7 == LOW){
saveState(7, !loadState(7));
digitalWrite(RELAY_LA_07, loadState(7)?RELAY_ON:RELAY_OFF);
send(msg7.set(loadState(7)));
}
}
if (debouncer8.update()) {
// Get the update value.
int value8 = debouncer8.read();
// Send in the new value.
if(value8 == LOW){
saveState(8, !loadState(8));
digitalWrite(RELAY_LA_08, loadState(8)?RELAY_ON:RELAY_OFF);
send(msg8.set(loadState(8)));
}
}
if (debouncer9.update()) {
// Get the update value.
int value9 = debouncer9.read();
// Send in the new value.
if(value9 == LOW){
saveState(9, !loadState(9));
digitalWrite(RELAY_LA_09, loadState(9)?RELAY_ON:RELAY_OFF);
send(msg9.set(loadState(9)));
}
}
if (debouncer10.update()) {
// Get the update value.
int value10 = debouncer10.read();
// Send in the new value.
if(value10 == LOW){
saveState(10, !loadState(10));
digitalWrite(RELAY_LA_10, loadState(10)?RELAY_ON:RELAY_OFF);
send(msg10.set(loadState(10)));
}
}
}

void receive(const MyMessage &message) {
// We only expect one type of message from controller. But we better check anyway.
if (message.type==V_LIGHT) {
// Change relay state
digitalWrite(message.sensor-1+RELAY_LA_01, message.getBool()?RELAY_ON:RELAY_OFF);
// Store state in eeprom
saveState(message.sensor, message.getBool());
// Write some debug info
Serial.print("Incoming change for sensor:");
Serial.print(message.sensor);
Serial.print(", New status: ");
Serial.println(message.getBool());
}
}




Dodane : 22/09/2021 7:57 pm
isom
 isom
(@isom)
Wpisów: 5319
Szef wszystkich szefów Moderator Zasłużony dla Forum, Donator 2K19, Donator 2K20
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@dawidkadziela najlepiej zacznij od wgrania kodu podstawowej bramki mqtt i jak zobaczysz że łączy się z siecią i brokerem którego port masz niby 8123 a to zapewne port HA a nie brokera , więc pewnie trzeba ustawić ten port na 1883 . Zresztą może tak , wgraj do arduino to co poniżej i uruchom podgląd monitor szeregowy

// Enable debug prints to serial monitor
#define MY_DEBUG

// Enables and select radio type (if attached)
//#define MY_RADIO_RF24
//#define MY_RADIO_RFM69
//#define MY_RADIO_RFM95

#define MY_GATEWAY_MQTT_CLIENT

// Set this node's subscribe and publish topic prefix
#define MY_MQTT_PUBLISH_TOPIC_PREFIX "mygateway1-out"
#define MY_MQTT_SUBSCRIBE_TOPIC_PREFIX "mygateway1-in"

// Set MQTT client id
#define MY_MQTT_CLIENT_ID "mysensors-1"

// W5100 Ethernet module SPI enable (optional if using a shield/module that manages SPI_EN signal)
//#define MY_W5100_SPI_EN 4

// Enable Soft SPI for NRF radio (note different radio wiring is required)
// The W5100 ethernet module seems to have a hard time co-operate with
// radio on the same spi bus.
//#if !defined(MY_W5100_SPI_EN) && !defined(ARDUINO_ARCH_SAMD)
//#define MY_SOFTSPI
//#define MY_SOFT_SPI_SCK_PIN 14
//#define MY_SOFT_SPI_MISO_PIN 16
//#define MY_SOFT_SPI_MOSI_PIN 15
//#endif

// When W5100 is connected we have to move CE/CSN pins for NRF radio
//#ifndef MY_RF24_CE_PIN
//#define MY_RF24_CE_PIN 5
//#endif
//#ifndef MY_RF24_CS_PIN
//#define MY_RF24_CS_PIN 6
//#endif

// Enable these if your MQTT broker requires username/password
#define MY_MQTT_USER "admin"
#define MY_MQTT_PASSWORD "password"

// Enable MY_IP_ADDRESS here if you want a static ip address (no DHCP)
#define MY_IP_ADDRESS 192,168,0,201

// If using static ip you can define Gateway and Subnet address as well
//#define MY_IP_GATEWAY_ADDRESS 192,168,1,1
//#define MY_IP_SUBNET_ADDRESS 255,255,255,0

// MQTT broker ip address or url. Define one or the other.
//#define MY_CONTROLLER_URL_ADDRESS "m20.cloudmqtt.com"
#define MY_CONTROLLER_IP_ADDRESS 192, 168, 0, 140

// The MQTT broker port to to open
#define MY_PORT 1883

/*
// Enable inclusion mode
#define MY_INCLUSION_MODE_FEATURE
// Enable Inclusion mode button on gateway
//#define MY_INCLUSION_BUTTON_FEATURE
// Set inclusion mode duration (in seconds)
#define MY_INCLUSION_MODE_DURATION 60
// Digital pin used for inclusion mode button
//#define MY_INCLUSION_MODE_BUTTON_PIN  3

// Set blinking period
#define MY_DEFAULT_LED_BLINK_PERIOD 300

// Flash leds on rx/tx/err
// Uncomment to override default HW configurations
//#define MY_DEFAULT_ERR_LED_PIN 16  // Error led pin
//#define MY_DEFAULT_RX_LED_PIN  16  // Receive led pin
//#define MY_DEFAULT_TX_LED_PIN  16  // the PCB, on board LED
*/

#include
#include

void setup()
{
	// Setup locally attached sensors
}

void presentation()
{
	// Present locally attached sensors here
}

void loop()
{
	// Send locally attached sensors data here
}

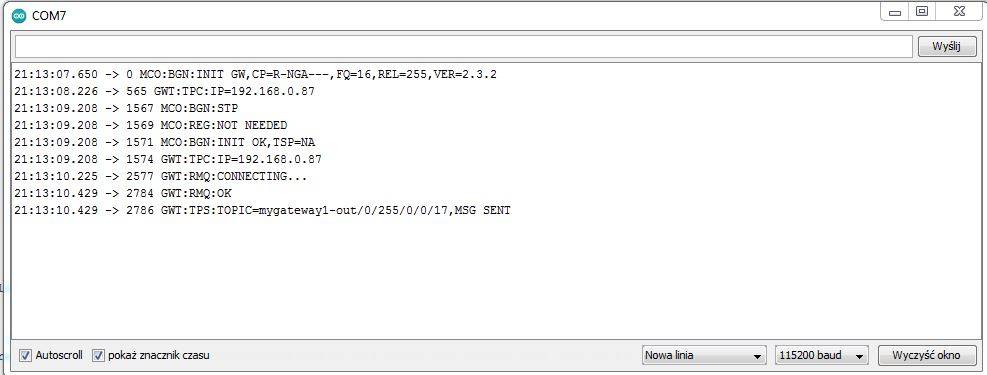

Powinieneś zobaczyć taki ekran , tylko IP będzie takie jak Twoje

2

Jak tak będzie to możesz walczyć dalej deklarując przekaźniki i przyciski

PS

Zapomniałem dodać że w kodzie musisz zmienić usera i hasło do brokera bo nie podałeś jakie masz więc nie mogłem wpisać :))





Dodane : 22/09/2021 9:26 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@isom

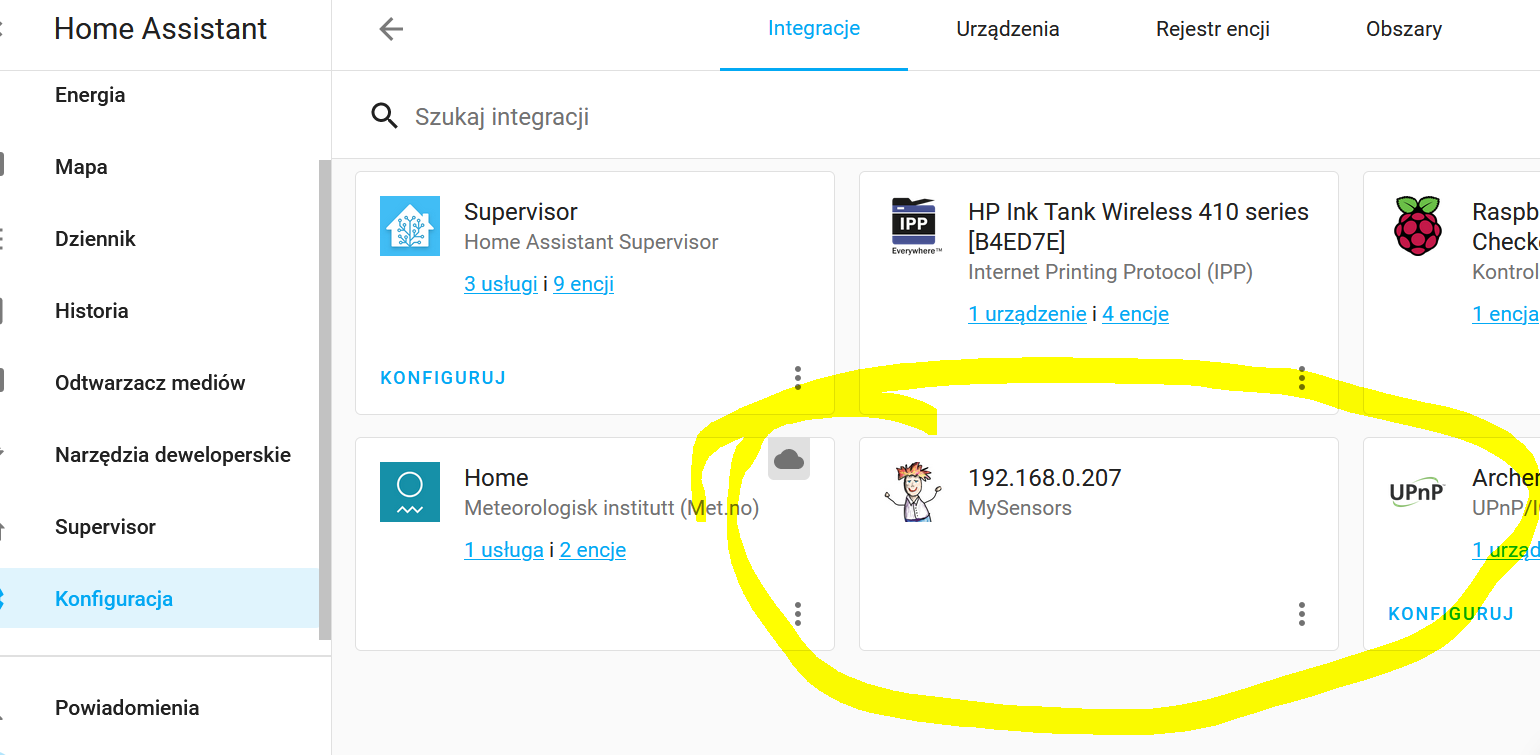

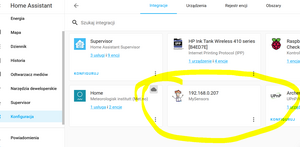

Na twoim skeczu nic nie pokazuje się w okienku. Z kolei na standardowym szkicu GatewayW5100MQTTClient:

obraz

Ni cholery nie chce się połączyć z LAN.

Udało mi się tylko raz połączyć ale na poniższym:

Spoiler
a
/*
Example MQTT-switch-relay-node with 4 buttons and 4 relays

- connects to an MQTT server
- subscribes to the topic "relay"
- controls 4 relays
- reads 4 button
- turns on/off a specific relay when it receives a specific "on"/"off" from the "relay" topic
- sends a specific "on"/"off" to the "relay" topic a specific button is pressed
- multiple arduino's with same generic sketch can run parallel to each other
- multiple arduino's need each to have a unique ip-addres, unique mac address and unique MQTT client-ID
- control DHT11 sensor temperature and humidity sensor
- control PIR sensor HC-SR501HC - NEED TO CHECK!
- led for PIR sensor (showing activity)
- tested on arduino-mega with W5100 ethernet shield - NEED more testing!
- Ethernet Shield W5100
*/

//------------------------------------------------------------------------------

#include <SPI.h>
#include <Ethernet.h>
#include <PubSubClient.h>
#include <Bounce2.h>
#include "DHT.h"

// --- temp/hum sensor --//
#define DHTPIN 11 // what pin we're connected to
#define humidity_topic "home/humidity1"
#define temperature_topic "home/temperature1"
#define DHTTYPE DHT11
DHT dht(DHTPIN, DHTTYPE);
// --- temp/hum sensor --//

// --- PIR sensor --//
int pirPin = 12; //the digital pin connected to the PIR sensor's output
int ledpirPin = 13;
int lastPirValue = LOW;
// --- PIR sensor --//

// Set relay variables to Arduino digital pins
int relay1 = 2;
int relay2 = 3;
int relay3 = 5; // pin 4 used by ethernet shield
int relay4 = 6;

// Set button variables to Arduino digital pins
int button1 = 7;
int button2 = 8;
int button3 = 9;
int button4 = 31; // pins 10,51,52 used by ethernetshield

// Set variables to act as virtual switches
// Set variable values initially to LOW (and not HIGH)
int relay1Value = LOW;
int relay2Value = LOW;
int relay3Value = LOW;
int relay4Value = LOW;

//---------------------------------------------------------------------------

// Arduino MAC address is on a sticker on your Ethernet shield
// must be unique for every node in same network
// To make a new unique address change last letter

byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xEE };

// Unique static IP address of this Arduino - change to adapt to your network
IPAddress ip(192,168,0,201);

// IP Address of your MQTT broker - change to adapt to your network
IPAddress server(192, 168, 1, 140);
char message_buff[100]; // this buffers our incoming messages so we can do something on certain commands

EthernetClient ethClient;
PubSubClient client(ethClient);
long lastReconnectAttempt = 0;

boolean reconnect() {
//Serial.print("Attempting MQTT connection...");
if (client.connect("ethClient", "mqtt", "xxx")) {
// Once connected, publish an announcement...
client.publish("home","connected");
Serial.println("connected");
// ... and resubscribe
client.subscribe("home/#");
}
else {
Serial.print("fairelay, rc=");
Serial.print(client.state());
Serial.println(" try again in 5 seconds");
// Wait 5 seconds before retrying
delay(5000);
}
return client.connected();

}
// Handle and convert incoming MQTT messages ----------------------------------------

void callback(char* topic, byte* payload, unsigned int length) {
// handle message arrived
String content="";
char character;
for (int num=0;num<length;num++) {
character = payload[num];
content.concat(character);
}
Serial.println(topic);
Serial.println(content); // message sent out by button actions is returned from broker and serial printed

// Set specific virtual switches on basis of specific incoming messages ----------------------------

if (content == "1on") {
relay1Value = HIGH;
}

if (content == "1off") {
relay1Value = LOW;
}

if (content == "2on") {
relay2Value = HIGH;
}

if (content == "2off") {
relay2Value = LOW;
}

if (content == "3on") {
relay3Value = HIGH;
}

if (content == "3off") {
relay3Value = LOW;
}

if (content == "4on") {
relay4Value = HIGH;
}

if (content == "4off") {
relay4Value = LOW;
}

// Set digital pin states according to virtual switch settings

digitalWrite(relay1,relay1Value);
digitalWrite(relay2,relay2Value);
digitalWrite(relay3,relay3Value);
digitalWrite(relay4,relay4Value);

}

// Initiate instances -----------------------------------

// Initiate a bouncer instance for each button
Bounce bouncer1 = Bounce();
Bounce bouncer2 = Bounce();
Bounce bouncer3 = Bounce();
Bounce bouncer4 = Bounce();

//-------------------------------------------------------

void setup()

{

// setup relay, button, bouncer 1 -----------------------
pinMode(relay1, OUTPUT);
pinMode(button1,INPUT);
digitalWrite(button1,HIGH);
bouncer1 .attach(button1);
bouncer1 .interval(5);

// setup relay, button, bouncer 2 -----------------------
pinMode(relay2, OUTPUT);
pinMode(button2,INPUT);
digitalWrite(button2,HIGH);
bouncer2 .attach(button2);
bouncer2 .interval(5);

// setup relay, button, bouncer 3 -----------------------
pinMode(relay3, OUTPUT);
pinMode(button3,INPUT);
digitalWrite(button3,HIGH);
bouncer3 .attach(button3);
bouncer3 .interval(5);

// setup relay, button, bouncer 4 -----------------------
pinMode(relay4, OUTPUT);
pinMode(button4,INPUT);
digitalWrite(button4,HIGH);
bouncer4 .attach(button4);
bouncer4 .interval(5);

// setup serial and ethernet communications -------------------------------
// Setup serial connection
Serial.begin(9600);

// Setup ethernet connection to MQTT broker
client.setServer("192.168.0.140", 8123);
client.setCallback(callback);
Ethernet.begin(mac, ip);
delay(1500);
lastReconnectAttempt = 0;
Serial.println(Ethernet.localIP());

// --- temp/hum sensor --//
dht.begin();
// --- temp/hum sensor --//

// --- PIR sensor --//
pinMode(pirPin, INPUT);
pinMode(ledpirPin, OUTPUT);
// --- PIR sensor --//

}

// --- temp/hum sensor --//
bool checkBound(float newValue, float prevValue, float maxDiff) {
return newValue < prevValue - maxDiff || newValue > prevValue + maxDiff;
}

long lastMsg = 0;
float temp = 0.0;
float hum = 0.0;
float diff = 1.0;
// --- temp/hum sensor --//

void loop()

{
if (!client.connected()) {
long now = millis();
if (now - lastReconnectAttempt > 5000) {
lastReconnectAttempt = now;
// Attempt to reconnect
if (reconnect()) {
lastReconnectAttempt = 0;
}
}
}
else {
client.loop(); }
// Listen for button interactions and take actions ----------------------------------------
// Note: Button actions do send MQTT message AND do set relay(x)Value to HIGH or LOW

if (bouncer1.update()) {
if (bouncer1.read() == HIGH) {
if (relay1Value == LOW) {
relay1Value = HIGH;
client.publish("home/relay","1on");
} else {
relay1Value = LOW;
client.publish("home/relay","1off");
}
}
}

//-----------------------------------------------

if (bouncer2.update()) {
if (bouncer2.read() == HIGH) {
if (relay2Value == LOW) {
relay2Value = HIGH;
client.publish("home/relay","2on");
} else {
relay2Value = LOW;
client.publish("home/relay","2off");
}
}
}

//------------------------------------------------

if (bouncer3.update()) {
if (bouncer3.read() == HIGH) {
if (relay3Value == LOW) {
relay3Value = HIGH;
client.publish("home/relay","3on");
} else {
relay3Value = LOW;
client.publish("home/relay","3off");
}
}
}

//-----------------------------------------------

if (bouncer4.update()) {
if (bouncer4.read() == HIGH) {
if (relay4Value == LOW) {
relay4Value = HIGH;
client.publish("home/relay","4on");
} else {
relay4Value = LOW;
client.publish("home/relay","4off");
}
}
}

// --- temp/hum sensor --//

long now = millis();
if (now - lastMsg > 60000) {
lastMsg = now;

// Reading temperature or humidity takes about 250 milliseconds!
// Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
float newHum = dht.readHumidity();
// Read temperature as Fahrenheit (isFahrenheit = true)
float newTemp = dht.readTemperature();

if (checkBound(newTemp, temp, diff)) {
temp = newTemp;
Serial.print("New temperature:");
Serial.println(String(temp).c_str());
client.publish(temperature_topic, String(temp).c_str());
}

if (checkBound(newHum, hum, diff)) {
hum = newHum;
Serial.print("New humidity:");
Serial.println(String(hum).c_str());
client.publish(humidity_topic, String(hum).c_str());
}
}
// --- temp/hum sensor --//

// --- PIR sensor --//
int pirValue = digitalRead(pirPin);
if (pirValue != lastPirValue) {
if (pirValue == HIGH) {
digitalWrite(ledpirPin, HIGH);
String message = String(pirValue);
client.publish("home/ruch1", message.c_str());
Serial.println(message.c_str());
}
if (pirValue == LOW) {
digitalWrite(ledpirPin, LOW);
String message = String(pirValue);
client.publish("home/ruch1", message.c_str());
Serial.println(message.c_str());
}
Serial.println(pirValue);
lastPirValue = pirValue;

// delay(30 * 1000);
}
// --- PIR sensor --//

}

// End of sketch ---------------------------------



Dodane : 22/09/2021 10:07 pm
isom
 isom
(@isom)
Wpisów: 5319
Szef wszystkich szefów Moderator Zasłużony dla Forum, Donator 2K19, Donator 2K20
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@dawidkadziela a możesz wgrać ten mój skecz i ustawić prawidłowe baud rate ? Zgodnie z moimi bazgrołami poniżej

3





Dodane : 22/09/2021 10:31 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian

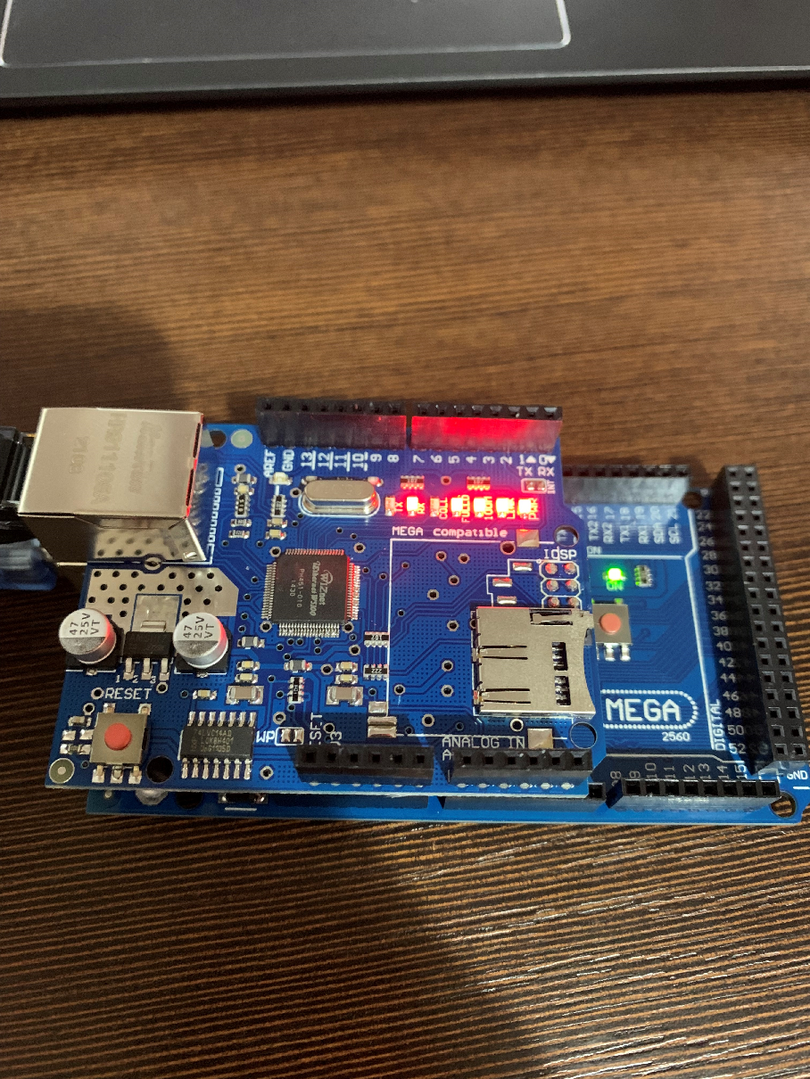

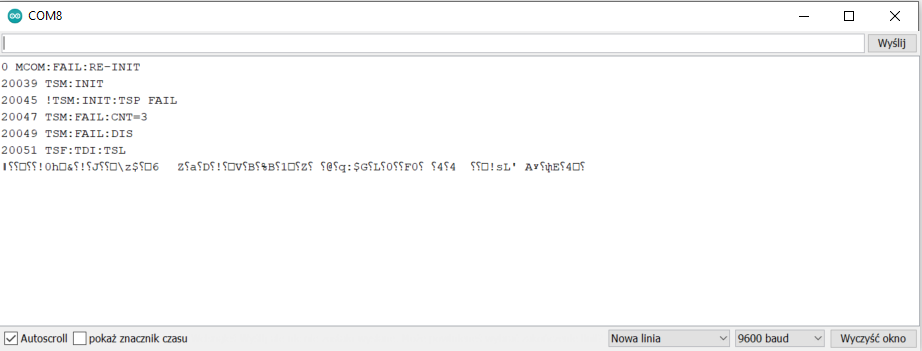

@isom No normalnie pusto nadal. Może sprzęt nie robi?

obraz


Dodane : 22/09/2021 10:42 pm
isom
 isom
(@isom)
Wpisów: 5319
Szef wszystkich szefów Moderator Zasłużony dla Forum, Donator 2K19, Donator 2K20
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian

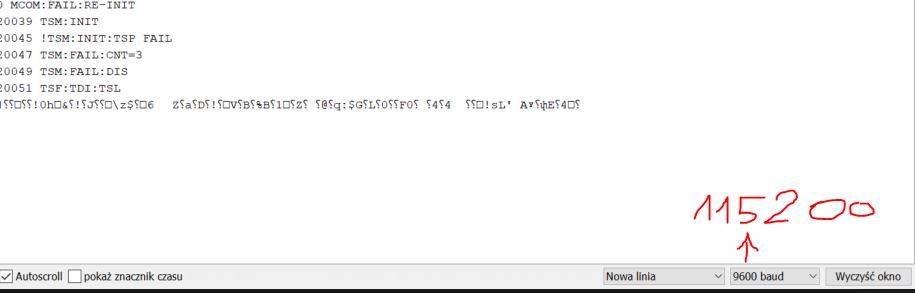

Ok to arduino mega , zmień w moim skeczu ten fragment

// Enable Soft SPI for NRF radio (note different radio wiring is required)
// The W5100 ethernet module seems to have a hard time co-operate with
// radio on the same spi bus.
//#if !defined(MY_W5100_SPI_EN) && !defined(ARDUINO_ARCH_SAMD)
#define MY_SOFTSPI
#define MY_SOFT_SPI_SCK_PIN 52
#define MY_SOFT_SPI_MISO_PIN 50
#define MY_SOFT_SPI_MOSI_PIN 51
//#endif


Dodane : 22/09/2021 10:53 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


Nadal cisza. Próbowałem też usunąć // z lini powyżej i poniżej ale nic to nie daje.



Dodane : 22/09/2021 11:01 pm
isom
 isom
(@isom)
Wpisów: 5319
Szef wszystkich szefów Moderator Zasłużony dla Forum, Donator 2K19, Donator 2K20
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@dawidkadziela dziwna to sprawa, jeszcze możesz sprawdzić taki prosty skecz cztery przekaźniki + przyciski , potrzebna biblioteka mqtt PubSubClient. jak nie wiesz która pobrać to wejdz w zarządzanie bibliotekami i wpisz mqtt i zainstaluj wszytko co dotyczy HA i mqtt , tylko bez ESP8266.

Przyciski sa na wejściach analogowych i aktywacja to zwarcie do GND

Reszta powinna być jasna

#include <SPI.h>
#include <Ethernet.h>
#include <PubSubClient.h>
#include <Bounce2.h>

// Set relay variables to Arduino digital pins
int rel1 = 2;
int rel2 = 3;
int rel3 = 5;                   //przekaźniki
int rel4 = 6;


// Set button variables to Arduino analog pins
int button1 = A1;
int button2 = A2;              //przyciski
int button3 = A3;
int button4 = A4;

// Set variables to act as virtual switches
// Set variable values initially to LOW (and not HIGH)
int rel1Value = LOW;
int rel2Value = LOW;
int rel3Value = LOW;
int rel4Value = LOW;


//---------------------------------------------------------------------------

// Arduino MAC address is on a sticker on your Ethernet shield
// must be unique for every node in same network
// To make a new unique address change last letter

byte mac[]    = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xEE };

// Unique static IP address of this Arduino - change to adapt to your network
IPAddress ip(192,168,0,208);

// IP Address of your MQTT broker - change to adapt to your network
byte server[] = { 192, 168, 0, 110 };

// Handle and convert incoming MQTT messages ----------------------------------------

void callback(char* topic, byte* payload, unsigned int length) {
  // handle message arrived
  String content="";
  char character;
  for (int num=0;num<length;num++) {
      character = payload[num];
      content.concat(character);
  }
  Serial.println(topic);
  Serial.println(content); // message sent out by button actions is returned from broker and serial printed


// Set specific virtual switches on basis of specific incoming messages ----------------------------

  if (content == "1on") {
    rel1Value = HIGH;
  }

  if (content == "1off") {
    rel1Value = LOW;
  }

  if (content == "2on") {
    rel2Value = HIGH;
  }

  if (content == "2off") {
    rel2Value = LOW;
  }


  if (content == "3on") {
    rel3Value = HIGH;
  }

  if (content == "3off") {
    rel3Value = LOW;
  }

  if (content == "4on") {
    rel4Value = HIGH;
  }

  if (content == "4off") {
    rel4Value = LOW;
  }


  // Set digital pin states according to virtual switch settings

  digitalWrite(rel1,rel1Value);
  digitalWrite(rel2,rel2Value);
  digitalWrite(rel3,rel3Value);
  digitalWrite(rel4,rel4Value);

}

// Initiate instances -----------------------------------

EthernetClient ethClient;
PubSubClient client(server, 1883, callback, ethClient);

// Initiate a bouncer instance for each button
Bounce bouncer1 = Bounce();
Bounce bouncer2 = Bounce();
Bounce bouncer3 = Bounce();
Bounce bouncer4 = Bounce();

//-------------------------------------------------------

void setup()

{

  // setup rel, button, bouncer 1 -----------------------
  pinMode(rel1, OUTPUT);
  pinMode(button1,INPUT);
  digitalWrite(button1,HIGH);
  bouncer1 .attach(button1);
  bouncer1 .interval(5);

  // setup rel, button, bouncer 2 -----------------------
  pinMode(rel2, OUTPUT);
  pinMode(button2,INPUT);
  digitalWrite(button2,HIGH);
  bouncer2 .attach(button2);
  bouncer2 .interval(5);

  // setup rel, button, bouncer 3 -----------------------
  pinMode(rel3, OUTPUT);
  pinMode(button3,INPUT);
  digitalWrite(button3,HIGH);
  bouncer3 .attach(button3);
  bouncer3 .interval(5);

  // setup rel, button, bouncer 4 -----------------------
  pinMode(rel4, OUTPUT);
  pinMode(button4,INPUT);
  digitalWrite(button4,HIGH);
  bouncer4 .attach(button4);
  bouncer4 .interval(5);

  // setup serial and ethernet communications -------------------------------

  // Setup serial connection
  Serial.begin(9600);

  // Setup ethernet connection to MQTT broker
  Ethernet.begin(mac);
  if (client.connect("arduino-ip-208")) {  							// change as desired - clientname must be unique for MQTT broker
    client.publish("relay","hello world - here arduino ip 208");
    Serial.println("connected");
    client.subscribe("relay");										// subscribe to topic "relay"
  }
}

//----------------------------------------------

void loop()
{

// Listen for button interactions and take actions ----------------------------------------
// Note: Button actions do send MQTT message AND do set rel(x)Value to HIGH or LOW

  if (bouncer1.update()) {
    if (bouncer1.read() == HIGH) {
      if (rel1Value == LOW) {
        rel1Value = HIGH;
        client.publish("relay","1on");
      } else {
        rel1Value = LOW;
        client.publish("relay","1off");
      }
    }
  }

//-----------------------------------------------

  if (bouncer2.update()) {
    if (bouncer2.read() == HIGH) {
      if (rel2Value == LOW) {
        rel2Value = HIGH;
        client.publish("relay","2on");
      } else {
        rel2Value = LOW;
        client.publish("relay","2off");
      }
    }
  }

//------------------------------------------------

  if (bouncer3.update()) {
    if (bouncer3.read() == HIGH) {
      if (rel3Value == LOW) {
        rel3Value = HIGH;
        client.publish("relay","3on");
      } else {
        rel3Value = LOW;
        client.publish("relay","3off");
      }
    }
  }

//-----------------------------------------------

  if (bouncer4.update()) {
    if (bouncer4.read() == HIGH) {
      if (rel4Value == LOW) {
        rel4Value = HIGH;
        client.publish("relay","4on");
      } else {
        rel4Value = LOW;
        client.publish("relay","4off");
      }
    }
  }

//------------------------------------------------

  client.loop();
}

// End of sketch ---------------------------------

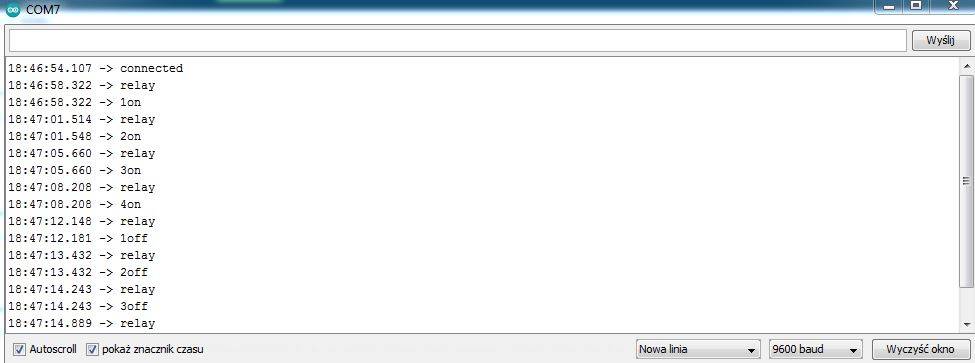

U mnie przy baud rate 9600 wszytko działa

1

 Ten skrypt jest gotowcem i publikuje tematy do brokera mqtt o stanie przekaźników , nie mam HA więc nie sprawdzę ale powinno działać. Rozbudowa o kolejne przekaźniki i przyciski nie powinna sprawiać problemu

PS ustaw sobie IP dla arduino i IP HA , w kodzie jest adres mojego brokera i IP dla arduino jakie mi przyszło do głowy

Dla jasności to nie jest skecz mysensors , ale pozwoli sprawdzić czy twój moduł W5100-Ethernet jest ok



Dodane : 23/09/2021 7:08 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@isom

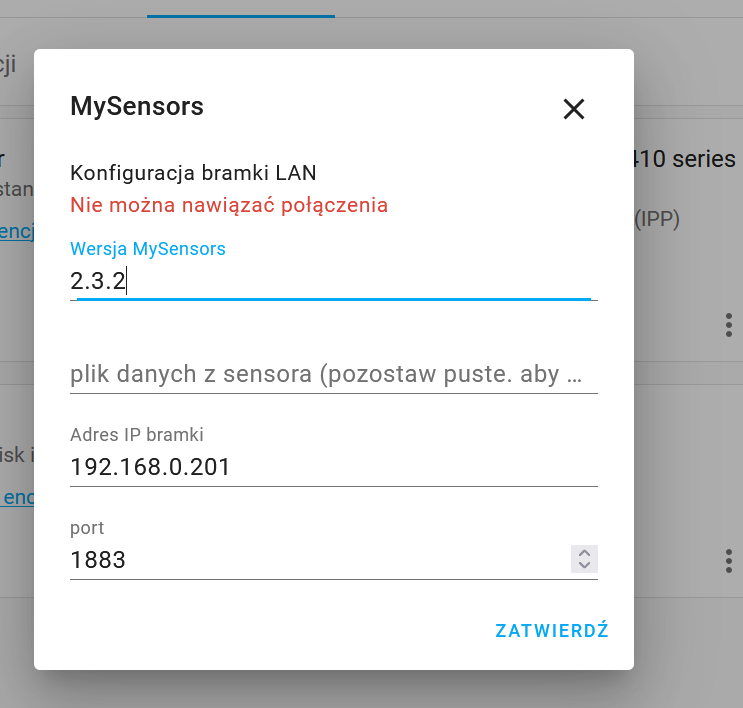

Dzięki Isom. Twój szkic nie mógł się skompilować nawet po zainstalowaniu dodatkowych bibliotek. Przy okazji znalazłem bibliotekę naszego rodaka "home-assistant-integration" i w przykładowym szkicu o nazwie "multi-state-button" dodałem linijki o nazwie użytkownika i hasła i się połączyło z HA! 🙂

Teraz muszę wymyślić jak to połączyć z moim szkicem aby My sensors zadziałało 🙂

Szkic

#include <Ethernet.h>
#include <ArduinoHA.h>

// This example uses JC Button library
// https://github.com/JChristensen/JC_Button
#include <JC_Button.h>

#define BUTTON_PIN 9
#define BUTTON_NAME "mybtn"
#define BROKER_ADDR IPAddress(192,168,0,140)
#define MY_MQTT_USER "mqtt"
#define MY_MQTT_PASSWORD "888496429"
byte mac[] = {0x00, 0x10, 0xFA, 0x6E, 0x38, 0x4A};

EthernetClient client;
HADevice device(mac, sizeof(mac));
HAMqtt mqtt(client, device);
HATriggers triggers;
Button btn(BUTTON_PIN);
bool holdingBtn = false;

void setup() {
// you don't need to verify return status
Ethernet.begin(mac);

// set device's details (optional)
device.setName("Arduino");
device.setSoftwareVersion("1.0.0");

// setup triggers
triggers.add("button_short_press", BUTTON_NAME);
triggers.add("button_long_press", BUTTON_NAME);
btn.begin();

mqtt.begin(BROKER_ADDR);
}

void loop() {
Ethernet.maintain();
mqtt.loop();
btn.read();

if (btn.pressedFor(3000) && !holdingBtn) {
triggers.trigger("button_long_press", BUTTON_NAME);
holdingBtn = true;
} else if (btn.wasReleased()) {
if (holdingBtn) {
holdingBtn = false;
} else {
triggers.trigger("button_short_press", BUTTON_NAME);
}
}
}



Dodane : 23/09/2021 9:42 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


Cześć,

Przepraszam że długo nie odpowiadałem. Sprawdziłem wszystkie opcje i wygląda na to że jednak łączy się do sieci LAN. Sprawdziłem to pingując adres.

Pozostaje jedynie konfiguracja w samym HA. Próbuję dodać integrację ale nic z tego nie wychodzi.

Przechwsssssytywanie







Dodane : 27/09/2021 1:14 pm
isom
 isom
(@isom)
Wpisów: 5319
Szef wszystkich szefów Moderator Zasłużony dla Forum, Donator 2K19, Donator 2K20
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@dawidkadziela a to w końcu ma być bramka LAN czy mqtt ? Bo jak LAN to raczej nie port 1883, na tym porcie masz brokera mqtt , przy LAN domyślny port to 5003



Dodane : 27/09/2021 4:52 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@isom teraz to ja już sam nie wiem. Ale udało mi się połączyć po zmianie portu na 5003 i utworzyłem dzięki temu integrację, która podczas łączenia nie wyświetliła błędu. Jednakże nadal nie widzę żadnego urządzenia w HA 🙁

obraz


Dodane : 28/09/2021 9:23 am
isom
 isom
(@isom)
Wpisów: 5319
Szef wszystkich szefów Moderator Zasłużony dla Forum, Donator 2K19, Donator 2K20
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@dawidkadziela nie wiem na którym skeczu bazujesz ale może aktywuj jakieś wejście w arduino i zrestartuj HA i zobacz czy coś się zmieni , jak nie to logi trzeba sprawdzać



Dodane : 28/09/2021 1:41 pm
leckimarcin
(@leckimarcin)
Wpisów: 53
Kontrybutor
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@dawidkadziela I masz już działający skrypt? Ja próbuję cały czas uruchomić to po LANie. Najgorsze jest to, że po USB w domoticzu mi to działało idealnie, później przeszedłem na HA i zaczęły się problemy z zapamiętywaniem aktualnych stanów. Myślałem że to wina komunikacji po USB z RPi. W między czasie  zamieniłem RPi na Dell Wyse na proxmoxie i komp wylądował w innym miejscu. Byłem zmuszony przejść na W5500. Próbuję to uruchomić, ale z mizernym skutkiem. Na chwilę obecną mam wgrany sketch ikanowski i z włączników działa, bo jakoś trzeba funkcjonowaćze światłem, ale komunikacja z HA leży totalnie. Może ktoś tutaj pomoże bo szukam pomocy gdzie się da:P Da się to prościej zrobić po mqtt?



Dodane : 19/06/2022 7:58 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@leckimarcin Hej,

Udało mi się po MQTT ze skryptem od jednego z zapaleńców z FB. W Automatyzacjach mam wtedy wyzwalacze 🙂

w załączniku skrypt.





Dodane : 20/06/2022 9:18 pm
leckimarcin
(@leckimarcin)
Wpisów: 53
Kontrybutor
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@dawidkadziela Wielkie dzięki:)

Tak sobie go teraz analizuję i nie mogę się dopatrzeć gdzie są definicje przekaźników? 😛



Dodane : 20/06/2022 9:31 pm
(@dawidkadziela)
Wpisów: 32
Praktykant
Autor tematu
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian


@leckimarcin

oj to już chyba nie pomogę. Ja używam tylko wyzwalaczy do wysterowani innych modułów MQTT.



edit:

tructSwitch mySwitches[] = {
{18, "Wiatrolap", HASwitch("ledA", false), "mdi:lightbulb" },
{17, "Pralnia", HASwitch("ledB", false), "mdi:LightbulbVariantOutline" },
{16, "Dobudówka", HASwitch("ledC", false), "mdi:mdiLightbulbMultiple" },
{15, "Kibelek", HASwitch("ledD", false), "mdi:LightbulbMultiple" },
{14, "Lazienka1", HASwitch("ledE", false), "mdi:flash" },
{13, "Lazienka2", HASwitch("ledF", false), "mdi:flash" },
{12, "Taras", HASwitch("ledG", false), "mdi:flash" },
{11, "Piec", HASwitch("ledH", false), "mdi:heater" },

To są wyjścia na przekaźniki.



{A0,"gab01",Button(A0)},
{A1,"gab02",Button(A1)},
{A2,"syp01",Button(A2)},
{A3,"syp02",Button(A3)},
{A4,"syp03",Button(A4)},
{A5,"syp04",Button(A5)},
{A6,"syp05",Button(A6)},
{A7,"syp06",Button(A7)},
{A8,"syp07",Button(A8)},
{A9,"syp08",Button(A9)},
{A10,"kor01",Button(A10)},
{A11,"kor02",Button(A11)},
{A12,"kor03",Button(A12)},

itd

A to są wyzwalacze.



Dodane : 20/06/2022 9:59 pm
Udostępnij:
